Ties & Accessories
Alongside our high quality concrete forming products, we also supply our general contracting partners a comprehensive, top of the line range of panel accessories such as latches, concrete form clips, cone ties and much, much more. They are designed to:
- Facilitate the convenience and ease of a construction job.
- Save you time and money.
- Promote safety on the jobsite.
- Promote professionalism and superior quality work.
At Western Kwik Forms, all of the products we supply have been manufactured to the industry’s highest standards. From latches to ties to adjustment panels, we offer the most diverse line of concrete form panel accessories so that you will always be able to find the right tool for the job.
Because we are committed to exceptional customer service, we offer:
- Financing OAC
- Delivery within a 50 km radius of Calgary and Edmonton.
If you would like to request the delivery of items outside of this range, our team will be more than happy to give you a more detailed quote on the delivery costs.
To learn more about our comprehensive range of concrete form accessories, contact our office anytime at 1-877-249-6788 or visit westernkwikforms.com.
Resi Coil Ties
Resi Coil Ties are used to form one-sided walls.The minimum distance is 6 inches from an existing wall and can extend as far as needed by using the threaded rod. Using the resi coil ties reduces or in some cases eliminates the need for time consuming bracing.
Ties
We offer an extensive inventory of ties in lengths from 4” to 96”:
Flat Ties
Provides support through horizontal joints between 1 1/8” wood forms when used with Flat Tie Wedges. Standard 8”, 10” and 12" sizes available in 100 pieces per box.
Other sizes are special order.

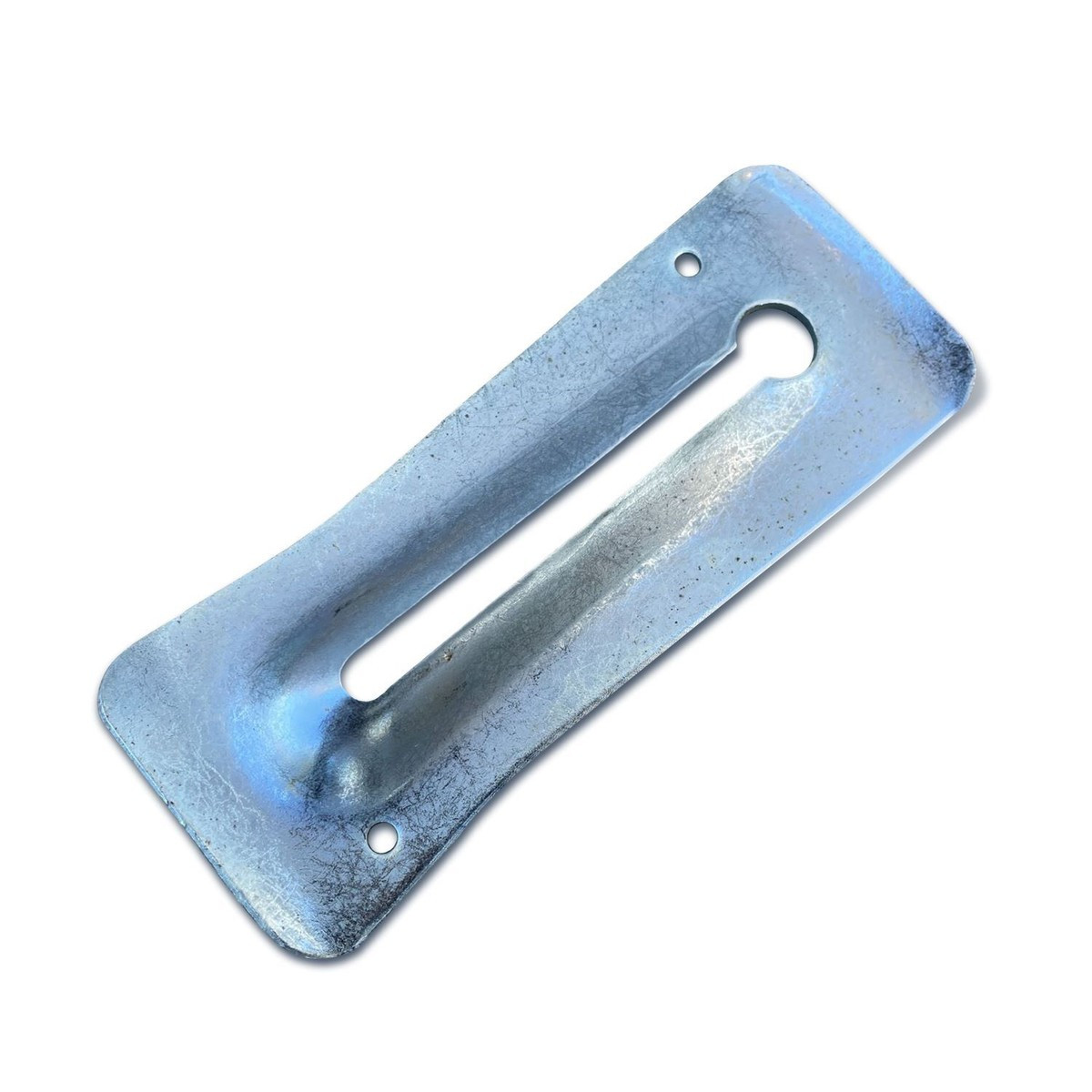

Flat Tie Wedge
Used to secure Flat Tie to 1 1/8” wood forms. Remove when stripping and saved for reusing.
Cone Tie
The cone tie is available with 1 or 2 cones, as well as with a sealing ring in the middle. These ties help prevent seepage of water and other liquids as well as provide a neat and professional finish.
Sandwich Wall Tie
The advanced design of the sandwich wall tie allows for an insulated panel to be held by the small steel plates while a wall is being poured.
"V" or Hook Ties
The "V" tie is designed to hold a corner firmly in place, by hooking onto another tie, when you have an offset.
Ply Spacers
Ply Spacers are used to hold the top of 2 plywood forms.
Standard 8”, 10” and 12" sizes available in boxes of 100.
Other sizes are special order.
Rebar Ties
We carry 5" and 6" rebar loop ties commonly used for residential and commercial cribbing.
Rebar Tie Wire
We carry a variety of rebar tie wire including : Max Twin, Max Single, TJEP Wire, Holland 16 Gauge, and Generic Wire.
Steel Waler Brackets
The top is attached to a bolt on the panel.
*Not for scaffolding
Option: 6″, 8″, 10″ or 12″

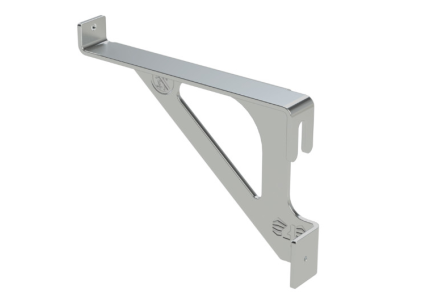

Aluminum Waler Bracket
This bracket is designed to be used as a shelf to support tools or any other materials. The top is attached to a bolt on the panel and the bottom can be fixed with a nail. We carry 10" and 12" but other sizes are available upon request.
22° Brackets
This bracket is designed to attach 2 outside fillers at a 22° angle. It can be used with our swing corners.
45° bracket
This bracket is designed to attach 2 outside fillers at a 45° angle. To be used with our inside 4”x 4” 45° corner or our swing corners.
90° Brackets
This 90˚ bracket is built to replace standard neutral corners. It can be used on any panel size.
A set of clips can replace many sizes of standard corners.
Interior Round Wall Bracket
This bracket is designed to attach 2 inside panels at a variable angle. You set the desired angle to form a round inside wall.
Exterior Round Wall Bracket
This bracket is designed to attach 2 outside panels at a variable angle. You set the desired angle to form a round outside wall.
Multi-Angle Lock
This lock is designed to attach 2 outside panels that are not at a 90° angle
Adjustable Footing Bracket
This bracket is designed to hold footing planks firmly in place at the desired width.
Footing Bracket
This bracket is designed to hold footing planks firmly in place.
Corner Clip
Corner clips hold panels and corners that don’t have latches firmly together.
Multifunctional.
Half-Clip
The half-clip is used when forming against an existing wall or footing steps. The half-clip will hold the tie firmly in its notch.
1" Latch
This latch attaches a neutral outside corner to the adjacent panel.
Inside 2" and 4" Corner Latch
Attached to a 2”x 2” or 4”x 4” corner, this latch secures the tie and the adjacent panel.
6" Latch
The 6″ latch is designed to attach a tie to the adjacent panel.
Bent Reversible Offset Latch
Hold two panels together when the bars don’t line up. Can be used on both sides of a panel. You simply attach it to the tie and bolt, then nail it in place.
Welded Reversible Offset Latch
Hold two panels together when the bars don’t line up. Can be used on both sides of a panel. You simply attach it to the tie and bolt, then nail it in place.
Swing Corner Lock
This lock fixes the swing corner at the desired angle. With this lock in place, you’ll never have to worry about your swing corners moving when you are pouring.
